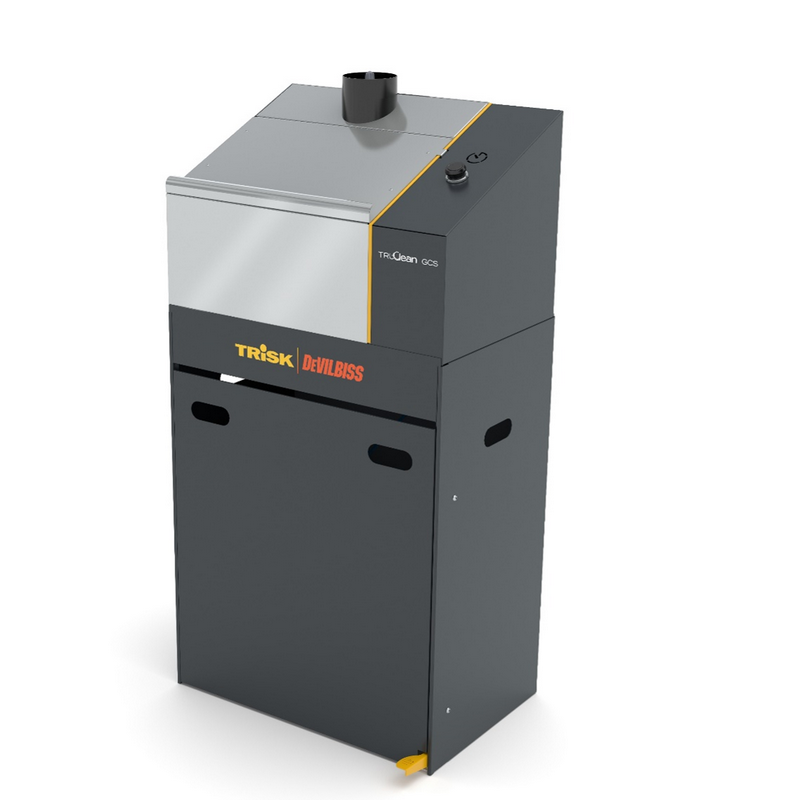

- DeVilbiss Trisk TruClean Gun Wash Machine (TC-GC-01).
- Quickly, safely, and efficiently cleans spray guns & application components with either waterborne or solvent-based cleaning media.
- The Trisk DeVilbiss freestanding Tru-Clean™ GCS gun cleaner unit allows for superior cleaning, proper maintenance, and longer life out of spray guns.
- Compact unit design provides flexibility of installation and requires minimal space in paint mixing rooms or dedicated cleaning areas.
- Powerful 10 l/min @ 6bar ( 2.6 gpm @ 87 psi) pump delivers effective cleaning of challenging paints.
- Convenient and simple user interface offers two activations: auto wash button or manual foot pedal control that allows for use of both hands during manual rinsing.
- The Tru-Clean GCS offers ability to wash application components used with solvent-based or waterborne materials.
- This option is operator selected by the washing media used with the gun cleaner.
- The unit is designed and suited to handle both media types.
- FEATURES & BENEFITS.
- • Five-nozzle wash bay for powerful and efficient 90 second automatic cleaning cycles.
- – Dedicated nozzle for gun paint channel cleaning featuring universal disposable cup adaption.
- – Dedicated nozzle for air cap cleaning – Three additional nozzles positioned to clean all exterior surfaces of applicator & components.
- • Robust & serviceable cleaning nozzle design – Five-nozzle washing bay allows for higher pressure through each nozzle for better cleaning and reduced cleaning time.
- – Easy-to-service with quick release mechanism.
- – Polyamide construction to prevent damage to guns and components supporting lower maintenance costs.
- • Strong ventilation when lid is open keeps operators safe and paint kitchen free of VOC’s.
- • Stainless Steel Washing Bay Construction.
- • High flow pump for effective cleaning.
- • Non-inverted cup mount.
- – Washes full paint channel of cup (mount does not block gun inlet).
- – Washes outer top thread for cups with threaded lids (GFC-501).
- – Mount does not damage inside of gravity cups, creating pockets for coatings to build up.
- • Centre mount exhaust port/vent – 100mm (4”) sizing is compatible with standard paint mixing rooms.
- – Supports strong, effective volatile extraction when the lid is open (0.8m/sec.).
- Weight 30 kg (66 lbs.).
- Height 1120 mm (44.1”).
- Width 582 mm (22.9”).
- Depth 385 mm (15.2”).
- Air Consumption – Auto Cycle <100 l/min (<3.5 cfm).
- Air Consumption – Manual Cleaning 210 l/min (7.4cfm).
- Avg.
- Ventilation Air Speed 0.8 m/sec (160 ft/min).
- Extraction Capacity 10m (33ft) extr.
- duct 290m3/h (171cfm).
- Air Supply 6 bar (87 psi).
- Drum Size Up to 25L (6.6 gal) (depending on drum dimension).
- Flushing Media Types.
- Solvent-Based or Waterborne.
- Part # TC-GC-01.
